Description

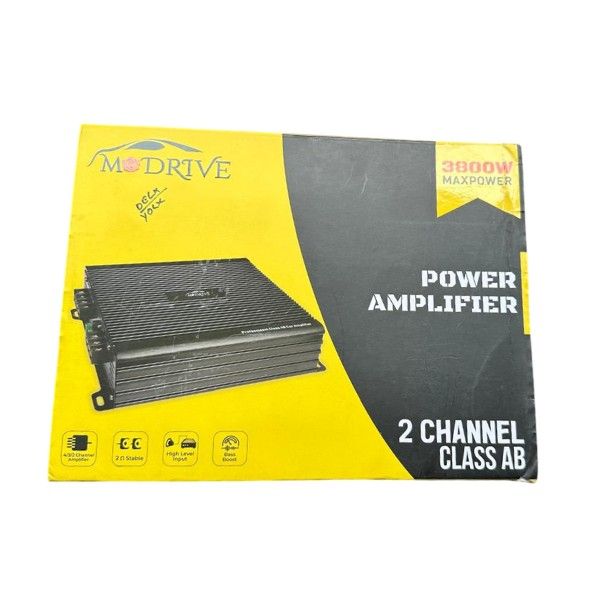

The MODRIVE 3800W Power Amplifier is designed for vehicle audio systems with stable sound performance and high power output support. This power amplifier features a 2 channel Class AB structure suitable for car entertainment and music playback setups.
Built with 3800W max power support, the amplifier helps provide improved audio performance for compatible vehicle sound systems. The compact amplifier structure supports installation in different car audio setups.

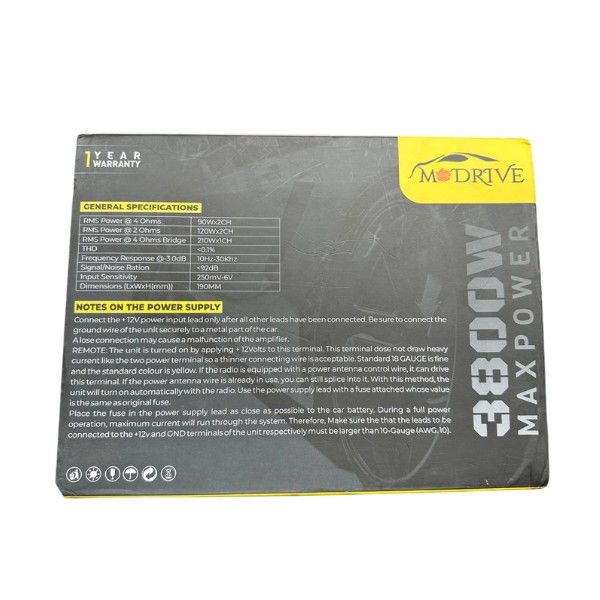

The amplifier supports RMS power output of 90W x 2 channels at 4 ohms and 120W x 2 channels at 2 ohms. It also supports 210W x 1 channel bridged output at 4 ohms for stronger audio performance.
This power amplifier features high level input support and input sensitivity ranging from 250mV to 6V for stable audio signal handling. The system also supports frequency response from 10Hz to 30KHz with THD below 0.1% and signal-to-noise ratio below 92dB.
Designed for car audio applications, this power amplifier supports stable performance for music playback and vehicle entertainment systems.
Features
- 2 channel Class AB amplifier
- 3800W max power
- 90W x 2 RMS at 4 ohms
- 120W x 2 RMS at 2 ohms
- 210W bridged output
- High level input support
- THD below 0.1%
- Frequency response 10Hz-30KHz
- Signal-to-noise ratio below 92dB
- Input sensitivity 250mV-6V
- Compact amplifier structure
- Suitable for vehicle sound systems
Product Using
- Suitable for cars
- Used for audio system setups
- Supports music playback
- Useful for sound upgrades
- Suitable for vehicle entertainment systems
